Choosing the right wire size for your electrical circuits can be a matter of safety. Did you know that using the wrong wire size could lead to overheating or even fire hazards? When it comes to a 50-amp circuit, selecting the right wire is crucial for both efficiency and safety.
In this post, we’ll discuss how to determine the proper wire size for a 50-amp circuit, including the best materials, NEC guidelines, and safety tips you need to know. Keep reading to ensure your electrical setup is both safe and reliable!
Understanding Wire Gauge and Ampacity
What is Wire Gauge and Why Does It Matter for 50 Amp Circuits?
When working on electrical systems, choosing the right wire size is crucial for ensuring everything runs smoothly. The wire gauge is a measurement used to indicate the thickness of the wire, which directly affects how much current it can carry safely. For a 50-amp circuit, selecting the correct wire gauge is essential to avoid potential hazards like overheating or fires.
Definition of Wire Gauge and its Role in Electrical Systems
The American Wire Gauge (AWG) system is used to measure wire thickness. A lower AWG number means a thicker wire, and thicker wires can carry more electrical current. For example, a 6 AWG wire is thicker than an 8 AWG wire and can safely carry more current.
When choosing a wire for a 50-amp circuit, it's not just about thickness; the gauge determines how much current the wire can handle without overheating. The right gauge ensures efficiency and safety, while the wrong one can result in overheating or damage to the wire, creating a dangerous situation.
How Wire Gauge Affects Ampacity
Ampacity refers to the maximum amount of electrical current a wire can safely carry. For a 50-amp circuit, the NEC (National Electrical Code) recommends a 6 AWG copper wire or a 4 AWG aluminum wire. Copper, being a better conductor, can carry more current with less resistance, which is why it is often used in many electrical applications.
Here’s a quick look at how different wire gauges compare:
| Wire Gauge (AWG) | Copper Ampacity | Aluminum Ampacity |
| 6 AWG | 50 amps | 40 amps |
| 4 AWG | 70 amps | 55 amps |
Notice how aluminum needs a larger gauge for the same amperage. That's because aluminum has higher resistance than copper. So, if you're using aluminum wire for a 50-amp circuit, going with 4 AWG ensures it can handle the current safely.
Why is Choosing the Right Wire Gauge for a 50 Amp Circuit Critical?
Using the wrong wire gauge can lead to voltage drops, overheating, or even fire hazards. For example, if the wire is too thin (higher AWG number), it can’t carry the full 50 amps, causing it to heat up. This heat can damage the wire's insulation, which increases the risk of electrical fires.
On the flip side, choosing a thicker wire than necessary may be more expensive and harder to work with, but it won’t result in overheating. Suzhou Crown's automatic wire crimping machines are perfect for ensuring proper connections, especially when dealing with heavier wires.
The key takeaway here: using the proper wire gauge for a 50-amp circuit is about striking a balance—ensuring safety, avoiding overheating, and maintaining efficiency in your electrical setup.
Selecting the Right Wire Size for 50 Amps
What Size Wire Should You Use for a 50 Amp Circuit?
When it comes to 50-amp circuits, choosing the right wire size is essential for both performance and safety. If you use a wire that's too thin, it could overheat, posing a fire risk. On the other hand, if the wire is too thick, it could be unnecessarily expensive and hard to work with. The correct wire size ensures your system runs safely and efficiently.
Copper vs. Aluminum: Which Wire Material is Best for 50 Amp Circuits?
When deciding between copper and aluminum wire, both have pros and cons that are worth considering.
Copper Wire:
Pros: Copper has better conductivity, meaning it can carry more current without generating as much heat. This makes it a popular choice for residential and commercial wiring. It's more durable and resistant to corrosion.
Cons: Copper is more expensive than aluminum, which can increase your upfront costs.
Aluminum Wire:
Pros: Aluminum is more affordable than copper, which can make it an attractive option for cost-sensitive projects. It’s also lightweight, making it easier to handle.
Cons: Aluminum has higher resistance, meaning it requires a larger gauge to carry the same current as copper. For a 50-amp circuit, you'd need at least a 4 AWG aluminum wire compared to 6 AWG copper wire.
Choosing the right material depends on factors like budget, durability, and installation requirements.
Recommended Wire Sizes for 50 Amp Circuits
For a standard 50-amp circuit, you'll typically want to use:
Keep in mind, if the circuit runs long distances, you may need to increase the wire size to accommodate for voltage drop. For longer runs (over 100 feet), going up to 4 AWG copper or 2 AWG aluminum might be necessary to ensure efficient power delivery.
For efficient wire preparation, tools like wire cutting machines or automatic wire cutting machines are ideal. These machines help ensure your wire is cut to the correct length without any damage to the material, making your installation process smoother and faster.
Understanding NEC Guidelines for 50 Amp Circuits
The National Electrical Code (NEC) provides clear guidelines on the wire size required for different amperages. According to NEC, for a 50-amp circuit, you'll need:
These recommendations are designed to ensure the circuit can handle the expected load safely, preventing overheating or electrical failures. Following the NEC’s guidelines not only ensures your system is safe, but it also helps you comply with local building codes and regulations.
Compliance with these guidelines is essential for preventing potential hazards and maintaining the overall efficiency of your electrical setup.

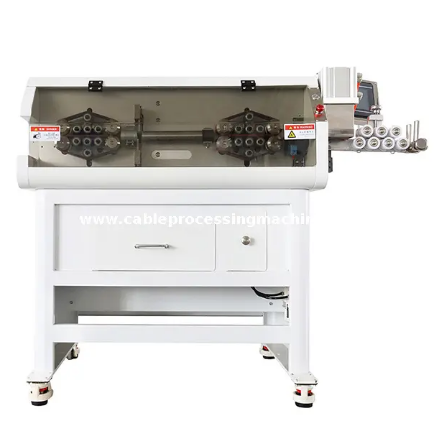

![What Size Wire Should You Use for a 50 Amp Circuit]( "What Size Wire Should You Use for a 50 Amp Circuit")
Key Factors Affecting Wire Size
What Factors Influence the Correct Wire Size for 50 Amp Circuits?
Selecting the right wire size for a 50-amp circuit isn't just about choosing a number from a chart. Several factors can affect the wire size you need, ensuring that your system is safe, efficient, and works properly.
Distance and Voltage Drop
When wiring a circuit, distance plays a big role in wire size. The longer the wire run, the higher the resistance it faces. This leads to voltage drop, which means your electrical devices won’t receive the full voltage they need.
For example, a 50 ft wire run might be fine with 6 AWG copper, but for longer distances like 100 ft or 150 ft, you’ll need to upsize the wire to 4 AWG or even 2 AWG to compensate for the drop in voltage. Without this adjustment, appliances may underperform, or worse, the wire could overheat.
Voltage drop calculations can be tricky, but in simple terms, the formula is:
Voltage Drop = (Current × Resistance × Length) / 1000
As a rule of thumb, for 50-amp circuits, keep the voltage drop under 3%. For longer distances, it’s best to upsize the wire to prevent overheating and ensure your electrical system remains efficient.
Ambient Temperature and Installation Conditions
Temperature matters more than you might think. If you’re running wire through areas like attics, basements, or even outdoors, extreme temperatures can cause your wire to perform differently. High heat can cause wire to heat up faster, while cold temperatures can make the wire more brittle and prone to damage.
For example, when wiring in attics or places that get hot in summer, it might be necessary to use a thicker wire or one rated for higher temperatures. This is why THHN wire (which stands for Thermoplastic High Heat-resistant Nylon-coated) is often used for residential wiring—it can handle higher temperatures without degrading.
Safety tip: Make sure the wire insulation is rated for the environment it will be installed in. Whether you’re using XHHW (Cross-Linked High Heat Water-resistant) for wet areas or THWN for dry areas, the right insulation can help prevent electrical hazards.
Wire Insulation and Type
Not all wires are created equal. The insulation around the wire plays a major role in determining its safety and capacity. Different insulation types can affect the wire's ability to handle current, temperature, and even environmental conditions.
Here are a few common wire insulation types:
THHN: Ideal for indoor dry locations; can handle higher temperatures.
THWN: Suitable for wet or damp environments.
XHHW: Perfect for wet conditions and extreme temperatures.
Understanding wire insulation types helps ensure you're using the right wire for your specific needs. If you're installing wire in areas exposed to moisture or extreme heat, make sure your wire insulation can handle it, or your system might face performance issues.
In addition, when using Suzhou Crown’s automatic wire cutting machines, it’s easy to prepare the right wire for your setup, whether it's copper or aluminum, ensuring you meet safety and performance standards.
Special Considerations for Different Applications
Are There Specific Considerations for 50 Amp Circuits in Certain Applications?
When working with 50-amp circuits, it's important to keep in mind that different applications have unique requirements. Whether you're wiring for an RV, connecting heavy appliances, or powering tools like welders, each setup may require adjustments in wire size, materials, or equipment to ensure safety and efficiency.
Wiring for RVs and Campers
For RVs and campers, 50-amp circuits are common because they provide enough power to run air conditioners, heaters, and other heavy appliances. These vehicles often need more power than typical home circuits, which is why 50 amp RV power cords are designed to handle these higher loads.
To size the wire properly, use 6 AWG copper wire or 4 AWG aluminum wire. This ensures the wire can handle the power demands without overheating. Additionally, using RV surge protectors can protect your equipment from sudden power spikes, ensuring safe operation while on the road.
When wiring for RVs, it's also important to remember the environmental factors—whether you're in a hot area, a damp environment, or a location prone to power surges, the wire insulation should be rated for these conditions. Specialized RV wire kits, available from brands like Suzhou Crown, can make your wiring setup easier and safer.
Wiring for Heavy Appliances: Electric Stoves, Dryers, and More
When wiring for high-powered appliances such as electric stoves, dryers, or water heaters, a 50-amp circuit is often required to ensure the appliances operate safely without overloading the system. These appliances typically draw a lot of power, especially when starting up, so appliance-specific wiring may be necessary.
For example, while you can use 6 AWG copper wire for a standard 50-amp circuit, certain appliances might need adjustments based on their power demands and location. If an appliance is far from the electrical panel, you might need a larger wire to compensate for voltage drop over the distance.
Custom wiring solutions might include the use of heat-resistant wire insulation or thicker gauge wire for longer distances. Ensuring the wire is rated for high power draws and has the proper insulation can help avoid risks like overheating and fire hazards.
Welding and Power Tools: Understanding the Power Demands
Welders and power tools, like those used in workshops or industrial settings, can have unique power requirements. A 50-amp welder often requires a larger wire size, depending on how long the wire run is and what type of welding is being done. For welding circuits, 6 AWG copper or 4 AWG aluminum wire is commonly used, but you might need to adjust based on the specific tool's amp draw.
Additional wire sizing tips include accounting for the duty cycle of the welder—whether it will be used for short bursts or continuous operation. For long-distance circuits, upsize the wire to prevent voltage drop and ensure enough power is delivered to the welder for safe operation.
In these applications, the quality of the wire and the type of insulation become more critical. Using specialized wires like XHHW for high-heat environments or THWN for wet conditions can ensure the circuit stays safe and efficient. Specialized tools like Suzhou Crown’s automatic wire crimping machines can also help ensure proper connections for high-power tools and equipment.
Common Mistakes to Avoid When Wiring for 50 Amps
What Are Common Mistakes People Make When Choosing a 50 Amp Wire Size?
When working on a 50-amp circuit, it’s easy to make mistakes that could lead to serious safety hazards. Here are some of the most common mistakes people make when selecting a wire for a 50-amp circuit and how to avoid them.
Using the Wrong Gauge or Material
One of the biggest mistakes is using a smaller gauge wire than needed. A wire that's too thin can’t carry the necessary current and will overheat, which can lead to electrical fires. If you’re wiring a 50-amp circuit, 6 AWG copper or 4 AWG aluminum is recommended. Using anything smaller, like 8 AWG, won’t work for 50 amps.
Another mistake is not properly sizing aluminum wire. Aluminum is more affordable than copper but has higher resistance. This means you need a larger gauge to handle the same current. For a 50-amp circuit, 4 AWG aluminum is needed to safely carry the current, while 6 AWG copper would work just fine.
Not Considering Voltage Drop
When you don't account for voltage drop, you may face performance issues. Voltage drop occurs when the electrical current loses power as it travels through the wire, especially over long distances. If the wire isn’t large enough to compensate, your appliances or equipment may not get the proper voltage they need.
For example, if your circuit runs longer than 100 feet, using 6 AWG copper wire might not be enough. To avoid this, you should upsize the wire to 4 AWG or even 2 AWG to maintain the right voltage. This ensures all devices on the circuit run smoothly without risk of damage or overheating.
Ignoring Local Electrical Codes
Electrical wiring isn’t just about choosing the right materials and size. It's also about compliance. Many people overlook local building codes or assume NEC guidelines are all they need to follow. Local codes can vary, and failing to follow them could lead to fines, repairs, or even issues when selling a property.
Always check both the National Electrical Code (NEC) and your local building codes before starting your wiring project. These codes provide vital information, ensuring your wiring is safe and meets legal requirements. Non-compliance can not only jeopardize safety but also delay construction or renovations.
How to Calculate Wire Size for 50 Amp Circuits: Step-by-Step Guide
When wiring a 50-amp circuit, calculating the correct wire size is essential to avoid overheating, voltage drops, and potential hazards. Here's a simple, step-by-step guide to help you determine the right wire size for your setup.
Step 1: Measure the Length of the Wire Run
The first step in calculating the correct wire size is measuring the total length of the wire run. Start from the power source (usually your breaker panel) to the end device (such as an appliance or outlet). This is crucial because the longer the wire, the more resistance it has, which can affect the voltage and current.
For example, if your circuit run is 100 feet from the breaker panel to the appliance, you’ll need to account for that extra distance when choosing your wire size.
Step 2: Account for Voltage Drop
Once you have the wire run length, the next step is to account for voltage drop. The longer the wire, the more voltage is lost over distance, especially if the wire is too small. To ensure your devices receive the correct voltage, we need to compensate for the voltage drop.
Here’s the formula to calculate the voltage drop:
Vd = 1.73 × K × L × I
Vd = Voltage drop (in volts)
K = Resistance of the wire (depends on the wire material)
L = One-way length of the circuit (in feet)
I = Current (in amps)
For a 50-amp circuit, you can use this formula to determine how much voltage drop occurs at various wire lengths. Generally, for runs over 100 feet, you may need to upsize your wire to avoid excessive voltage drop.
For example, if you have a 100-foot run with a 50-amp load, you may need to use 4 AWG copper wire instead of 6 AWG to maintain proper voltage.
Step 3: Use the Right Wire Gauge Chart for 50 Amp Circuits
After considering the length and voltage drop, it’s time to choose the right wire size. AWG (American Wire Gauge) charts are a great tool to determine the right wire gauge for your specific setup. Here’s a basic reference for 50-amp circuits:
| Wire Type | Gauge | Recommended Use |
| Copper | 6 AWG | Standard 50 Amp Circuit (under 100 feet) |
| Aluminum | 4 AWG | Standard 50 Amp Circuit (under 100 feet) |
If the distance is greater than 100 feet, refer to the chart and choose a larger wire size to avoid excessive voltage drop.
For easier and more accurate wire preparation, tools like Suzhou Crown’s wire prefeeder machines can help you get the exact length and reduce potential errors during installation. These machines ensure precision in wire cutting and stripping, which is especially useful for large-scale or complex installations.
Ensuring Safety and Efficiency in 50 Amp Circuit Installations
How to Avoid Overheating and Fire Hazards
Using the wrong wire size is a major cause of overheating in electrical systems. If the wire is too small for the amount of current it’s carrying, it will heat up, and this can lead to melted insulation, short circuits, or even fires. For a 50-amp circuit, make sure to use 6 AWG copper wire or 4 AWG aluminum wire to avoid this risk.
One simple way to prevent overheating is by ensuring the wire is properly sized for the load and distance. If the wire is too long, voltage drop increases, and more current is needed to run your equipment. This can overload the wire and cause overheating. For long runs, upsizing the wire is necessary to maintain safe and efficient operation.
Regular maintenance is also essential. Check for visible wear and tear, such as frayed insulation or exposed wiring. If you spot any damage, replace the wire immediately to prevent hazards. Using Suzhou Crown's wire harness testers can help you identify any weaknesses in the wire before they turn into problems.
Regular Maintenance and Inspection of 50 Amp Circuits
Wires degrade over time, and it’s important to inspect your 50-amp circuits regularly. Frequent inspections help catch any issues like insulation breakdown, rodent damage, or loose connections. Without regular checks, minor problems can escalate into major risks, so make inspecting your circuits a routine.
Wire harness testers and similar maintenance tools help you keep track of wire condition. These tools test for resistance, voltage, and other factors to ensure the circuit is still operating efficiently. It’s also wise to check for heat spots along the wire run, as they can indicate an overload or poor connection.
Use of Circuit Breakers and Protectors
Installing a 50 amp circuit breaker is a must to protect your electrical system. The breaker acts as a safety switch, automatically shutting off power if the circuit is overloaded, helping to prevent fires or damage to appliances. Without a properly rated breaker, the risk of electrical fires increases significantly.
In addition to breakers, surge protectors are an excellent safety feature for sensitive equipment. These devices protect your appliances and devices from sudden power surges, which can happen during storms or power fluctuations. Surge protectors are especially useful when working with expensive electronics or machinery, ensuring they’re shielded from unexpected electrical spikes.
Conclusion: Choosing the Right Wire Size for a 50 Amp Circuit
Choosing the right wire size for a 50-amp circuit is essential for safety and efficiency. Remember to use 6 AWG copper wire or 4 AWG aluminum wire and consider factors like voltage drop and distance. If unsure about installation or sizing, always consult an electrician. For easier and safer installation, consider using reliable wire processing tools like cutting and stripping machines to improve efficiency and accuracy.
FAQs About 50 Amp Wire Size
Q: Will 6 Gauge Wire Carry 50 Amps?
A: Yes, 6 gauge copper wire is sufficient for most 50-amp circuits and can safely handle the current for short distances.
Q: Can I Use 8 Gauge Wire for 50 Amps?
A: No, 8 gauge wire is too small for a 50-amp circuit. It can overheat, causing damage to the wire and potentially leading to fire hazards.
Q: What Size Wire for 50 Amp Sub Panel?
A: For a 50-amp sub panel, use 6 AWG copper wire or 4 AWG aluminum wire to ensure safe and efficient power delivery.
Q: How Far Can 6 Gauge Wire Carry 50 Amps?
A: 6 gauge wire can carry 50 amps for distances up to 100 feet. For longer distances, you’ll need a larger wire size to prevent voltage drop.
