Stripping wire insulation can be a time-consuming task, especially without the right tools. Have you ever wondered how a wire stripping machine can make this process easier? A wire stripping machine is designed to automate and speed up wire insulation removal. In this article, we'll show you how to use this tool effectively and get the best results. You'll learn how to set up, operate, and maintain your machine to ensure efficient and safe stripping of copper wires.
Understanding the Basics of a Wire Stripping Machine
What is a Wire Stripping Machine?
A wire stripping machine is a device that removes the insulation from copper, aluminum, or other wire types, leaving behind the bare metal wire. This process is often used in recycling scrap metal, particularly copper wire, which holds significant value once its insulation is stripped. These machines are designed to handle different wire sizes and types, from small gauge wires to thick cables. Wire stripping machines not only save time but also prevent wire damage, which could reduce the value of the recovered copper.
Types of Wire Stripping Machines
There are several types of wire stripping machines, from manual models to fully automated ones. Here are a few popular options:
Manual Wire Strippers: These require physical effort to operate and are usually best for small batches of wire.
Automatic Wire Strippers: These machines use electric motors to feed wire through and strip insulation without the need for manual labor. Popular models like the BWS-50 Multi-Feed and BWS-38-Motor V2 can handle large volumes efficiently.
Note: Automatic wire strippers are best suited for businesses or large-scale recycling operations that need to strip large quantities of wire in a short amount of time.
Key Features of a Wire Stripping Machine
When selecting a wire stripping machine, consider these essential features:
Motor Power: Machines powered by strong motors can handle thicker wires without strain.
Adjustable Tension: This allows the machine to work with various wire gauges, from thin strands to thicker cables.
Feed System: Most automatic machines have a feed system that pulls the wire through the machine at a consistent rate, reducing the risk of jams.

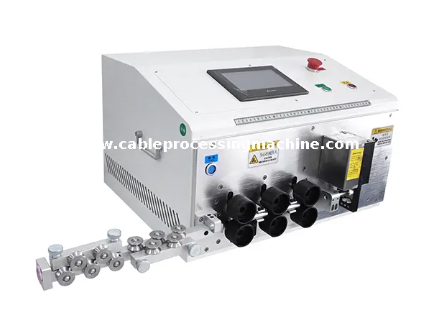

![wire stripping machine]( "wire stripping machine")
Step-by-Step Guide on How to Use a Wire Stripping Machine
Step 1 – Choosing the Right Wire Stripper for the Job
Selecting the right wire stripping machine depends on several factors, such as wire thickness, type, and volume. Choose a machine that is capable of handling the gauge of wire you need to strip. For instance, the BWS-50 SAR is ideal for medium-sized scrap wires, while the BWS-38-Motor V2 works well with larger wires.
Tip: Always check the machine's specifications to ensure it matches your wire stripping needs.
Step 2 – Preparing the Wire
Before using the wire stripping machine, it's essential to prepare your wire. Follow these steps:
Straighten the Wire: Ensure the wire is straight to avoid jams or improper stripping.
Remove Dirt and Debris: Clean the wire by removing any dirt, dust, or moisture, as these can affect the machine's performance.
Cut to Manageable Lengths: Cut the wire into manageable lengths (around 5 to 10 feet). This will help feed the wire through the machine more easily.
Step 3 – Setting Up the Wire Stripping Machine
Once you've prepared your wire, it's time to set up the machine:
Adjust the Spring Tension: Most wire strippers come with a spring tension system that adapts to various wire gauges. Set the tension according to the wire you're using.
Select the Right Feed Hole: Choose the appropriate hole size based on your wire’s thickness. This ensures smooth insertion and minimizes the risk of jams.
Step 4 – Operating the Machine
Now that your wire is ready and the machine is set up, it's time to strip the insulation:
Insert the Wire: Place the wire into the feed hole, ensuring it’s positioned correctly.
Turn on the Machine: Activate the machine, and it will automatically feed the wire through the system. Most automatic machines feature forward and reverse functionality to prevent jams and ensure smooth stripping.
Let the Machine Do the Work: The machine will strip the wire automatically. Be sure to monitor the process to ensure everything runs smoothly.
If the wire doesn’t strip completely, you may need to adjust the feed or tension settings and run the wire through again.
Troubleshooting Common Issues When Using a Wire Stripping Machine
Wire Jamming and How to Fix It
Jamming is a common issue with wire stripping machines, especially if the wire is not correctly prepared. If your wire stripper is experiencing jams, here are some common causes and solutions:
Cause 1 – Incorrect Feed Size: Ensure the wire is inserted into the correct feed hole. If it's too large, the machine will have difficulty pulling it through.
Cause 2 – Improper Tension Settings: Adjust the tension to avoid the wire being pulled too tightly, which can cause it to kink or jam.
Incomplete Stripping – Why It Happens and How to Solve It
If your wire is not stripped cleanly, here are a few reasons why:
Wire Not Inserted Deep Enough: Make sure the wire is inserted to the correct depth in the machine.
Incorrect Tension: If the tension is too low, the machine may not grip the wire tightly enough to strip the insulation completely.
Tip: Always check that your machine is set to the correct wire gauge before beginning.
Handling Delicate Wires
Thin or delicate wires, such as 30 AWG or smaller, can be challenging to strip without damage. To avoid this:
Use a Lower Tension Setting: Adjust the machine to handle smaller, more fragile wires with less pressure.
Test on Spare Wires: Practice with a scrap wire before working on valuable materials.
Maximizing Efficiency with Your Wire Stripping Machine
Best Practices for Efficient Wire Stripping
To get the best performance from your wire stripping machine, follow these best practices:
Batch Process: Strip multiple wires at once by preparing a batch of wire. This reduces downtime and increases throughput.
Consistent Monitoring: Always supervise the machine during operation to ensure smooth performance and prevent issues.
Maintenance Tips to Keep Your Machine Running Smoothly
A well-maintained machine performs better and lasts longer. Here's how to care for your wire stripping machine:
Note: Routine maintenance can prevent costly repairs and ensure your machine runs smoothly.
Safety Precautions When Using a Wire Stripping Machine
When using a wire stripping machine, safety should always be a priority. Here are some key precautions:
Wear Safety Gear: Always wear gloves and goggles to protect yourself from flying debris.
Disconnect Power During Maintenance: Before cleaning or performing maintenance, disconnect the machine from its power source to prevent accidents.
Benefits of Using a Wire Stripping Machine for Scrap Copper Recycling
How a Wire Stripping Machine Increases Profitability
Using a wire stripping machine can significantly increase profitability for scrap copper recyclers by:
Reduced Labor Costs and Increased Efficiency
Manual wire stripping can be labor-intensive. A wire stripping machine:
Reduces Manual Labor: By automating the process, recyclers can handle more material with fewer workers.
Increases Efficiency: The machine speeds up the stripping process, allowing businesses to process larger volumes of wire.
Environmental Impact and Sustainability
Wire stripping machines help recyclers reduce waste by efficiently recovering copper and other metals. This contributes to sustainability by:
Comparing Wire Stripping Machines – Which One Is Right for You?
Manual vs. Automatic Wire Strippers
Manual wire strippers require more physical effort and are best for small-scale projects. In contrast, automatic machines are ideal for businesses that need to strip large volumes of wire quickly.
For large-scale recycling, automatic machines offer better speed and consistency than manual ones.
Features to Look for in an Automatic Wire Stripper
When comparing wire stripping machines, focus on features such as:
Motor Power: Look for machines with motors capable of handling the wire sizes you work with.
Adjustable Tension: Choose a machine that can adjust to different wire gauges.
Ease of Use: A user-friendly interface can make a significant difference in reducing setup time.
Price vs. Performance – Finding the Best Value
While price is a significant factor, it's essential to balance cost with performance. Choose a machine that offers the best value based on your specific needs, such as volume, wire types, and desired output.
Conclusion
In conclusion, understanding how to properly use a wire stripping machine is essential for maximizing efficiency and profitability, particularly in industries like scrap copper recycling. By following the steps outlined in this guide, you can ensure that you're using your wire stripper to its fullest potential while avoiding common issues like jams or incomplete stripping.
Regular maintenance and careful setup are key to long-term success with your wire stripping machine. Suzhou Crown offers high-quality wire stripping machines designed to streamline your wire processing operations, improving both efficiency and profitability.
FAQ
Q: What is a wire stripping machine and how does it work?
A: A wire stripping machine is a tool designed to remove insulation from electrical wires. It works by gripping the wire and pulling it through a set of blades, which strips the insulation off without damaging the wire.
Q: How do I set up a wire stripping machine?
A: Setting up a wire stripping machine involves adjusting the tension, choosing the correct feed hole size, and ensuring the machine is clean and properly maintained. Always check the manufacturer’s guidelines for specific setup instructions.
Q: Why should I use a wire stripping machine?
A: Using a wire stripping machine helps improve efficiency, saves time, and ensures consistent results. It is especially useful for recycling scrap copper wire, as it speeds up the process and maximizes the amount of recoverable copper.
