Testing a wire harness is essential for maintaining electrical systems in vehicles and machines. A simple malfunction can cause major disruptions. Using a wire harness tester, like a multimeter, helps identify issues quickly.
In this article, we will guide you through the process of testing a wire harness with a multimeter. By the end, you'll have the knowledge to troubleshoot and ensure the safety of your electrical systems.
Why Test a Wire Harness with a Multimeter?
Understanding the Role of a Wire Harness in Electrical Systems
Wire harnesses are bundles of wires or cables that are neatly arranged and insulated for easy installation and maintenance. In vehicles, machinery, and electrical systems, wire harnesses connect various components, ensuring proper communication and power flow. However, these harnesses are vulnerable to wear and tear. Over time, factors such as physical stress, heat, and corrosion can cause wires to break or short out, which can lead to system malfunctions.
How a Multimeter Helps in Diagnosing Wire Harness Issues
A wire harness tester like a multimeter can quickly diagnose issues like open circuits, shorts, and improper connections. Using a multimeter, you can test for continuity, voltage, and resistance, which helps identify problem areas in the harness. The multimeter is an essential tool in detecting and resolving electrical issues before they become serious problems.
The Risks of Not Testing Your Wire Harness
If you neglect to test your wire harness, you risk experiencing intermittent electrical issues or complete system failures. For example, a broken wire in a harness could stop critical systems like lights, wipers, or ignition from functioning properly. This can be time-consuming and costly to repair, especially if the issue goes unnoticed for too long.
Essential Tools and Setup for Wire Harness Testing
Choosing the Right Wire Harness Tester
When selecting a wire harness tester, it's important to choose a multimeter that fits your needs. Look for one with continuity testing capabilities, which is essential for checking the integrity of your wire harness. Digital multimeters (DMM) are often preferred due to their ease of use and precision, but analog multimeters can also be effective for basic tasks. Models like Fluke, Klein, and Extech are known for their durability and reliability in automotive and electrical testing.
Setting Up Your Multimeter for Wire Harness Testing
Before you start testing, it's essential to configure your multimeter correctly. Set your multimeter to the "continuity" mode, which allows the device to detect whether there is a complete path for electrical current. In some multimeters, this mode is combined with the resistance (Ω) setting. Once activated, the multimeter will beep if continuity is detected, signaling that the circuit is complete.
Tip: Always check the battery level of your multimeter before starting. A low battery can result in inaccurate readings.
Additional Tools You'll Need for the Test
While the multimeter is the primary tool, there are a few other items that can help ensure accurate testing:
Test leads: High-quality test leads provide better connectivity and minimize the risk of false readings.
T-pins: Useful for back-probing wire harness connections and testing individual wires without damaging the harness.
Alligator clips: For making temporary connections to test wires when needed.
Insulated gloves: Always wear gloves to protect yourself from electrical hazards, especially when dealing with live circuits.

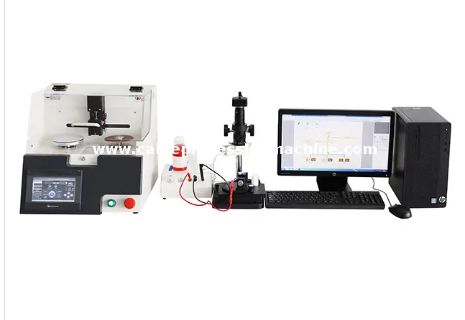

![Wire Harness Tester]( "Wire Harness Tester")
Step-by-Step Guide: How to Test a Wire Harness with a Multimeter
Step 1: Inspecting the Wire Harness Visually
Before using the multimeter, it's helpful to perform a visual inspection of the wire harness. Look for any signs of wear, corrosion, or exposed wires that may indicate a problem. Check for spots where the insulation might have been compromised, as this can cause short circuits. If you're working with a vehicle, remove any interior trim panels carefully to access the harness without damaging the panels.
Step 2: Setting Up the Multimeter for Continuity Testing
Once you've located the section of the wire harness you wish to test, set your multimeter to the 'continuity' or 'resistance' mode. Insert the black lead into the COM jack and the red lead into the VΩ jack. Touch the probes to the two ends of the wire you're testing, ensuring that the circuit is not powered on. If the wire harness has multiple wires, test each wire individually to isolate any faulty connections.
Step 3: Performing the Continuity Test
Place one multimeter probe on one end of the wire and the other probe on the other end. If the wire is functional, the multimeter will beep, indicating that there is continuity and the wire is intact. If the multimeter shows 'OL' (open loop) or an infinite reading, the wire is broken or there is a disconnection somewhere along the wire. Always ensure that you're testing with the circuit de-energized to avoid any risk of electrical shock or damage to your multimeter.
Step 4: Identifying Faulty Wires and Connections
Once you've completed the test, identify any wires that do not show continuity. These are the faulty sections that need to be repaired or replaced. Depending on the severity of the damage, you may need to either splice in a new section of wire or replace the entire wire harness.
How to Troubleshoot Common Wire Harness Issues with a Multimeter
Dealing with Broken Wires in the Harness
If you detect a break in the wire using your multimeter, the next step is to fix it. To do this:
Cut away any damaged sections of wire.
Strip the insulation back from the ends of the remaining wire.
Solder or splice in a new section of wire, ensuring a secure connection.
Test the repair using the multimeter to confirm that the wire is functioning correctly.
Identifying Grounding Issues in the Wire Harness
Grounding problems can often be difficult to detect. Use your multimeter to test for a voltage drop across the ground connection. If there is a significant voltage drop or no voltage at all, the ground connection is likely faulty.
Testing for Short Circuits in the Wire Harness
Short circuits can cause significant problems within the wire harness. To test for shorts:
Disconnect the power supply to the wire harness.
Set your multimeter to measure resistance or continuity.
Place one probe at each end of the wire. If the multimeter shows continuity, there is likely a short.
Use the multimeter to trace where the short is occurring and make the necessary repairs.
Tips for Maintaining and Preventing Wire Harness Issues
Regular Wire Harness Inspections
Performing regular inspections of your wire harness can prevent costly repairs down the road. Look for frayed wires, signs of wear, and exposed connections. Regular testing with a wire harness tester can also help catch issues before they become major problems.
Tip: Set a schedule for periodic wire harness testing, especially in high-use areas like vehicles or machinery.
Protecting the Wire Harness from Wear and Tear
Use protective coverings such as flexible conduit or loom to shield your wire harness from abrasion and external damage. Ensure that wires are routed away from sharp edges, hot surfaces, and areas where they might be subjected to physical stress.
Tip: Always secure the harness with clips or ties to prevent movement that could cause wear over time.
Using a Wire Harness Tester to Extend the Life of Your Vehicle or Electrical System
By using a wire harness tester regularly, you can extend the lifespan of your electrical systems. Testing the harness helps ensure proper functionality, prevents malfunctions, and avoids unnecessary repairs.
Tip: Implement routine checks, especially if your vehicle or equipment operates in harsh conditions.
Conclusion
Testing your wire harness with a multimeter is a simple yet essential process for maintaining the integrity of your electrical systems. By following the steps outlined above, you can diagnose issues early, prevent costly repairs, and ensure optimal performance. Whether you're a professional technician or a DIY enthusiast, mastering wire harness testing with a multimeter is a valuable skill that will save time, money, and frustration in the long run. Don't skip regular wire harness testing. It's an easy preventive measure that can save you from unexpected breakdowns and costly repairs.
Suzhou Crown provides high-quality Wire Harness Testers designed to improve diagnostic accuracy. Their reliable products offer value by ensuring precise and efficient testing for electrical systems.
FAQ
Q: What is a Wire Harness Tester and why is it important?
A: A Wire Harness Tester is a tool used to test the continuity and integrity of wires within a harness. It ensures that electrical connections are secure and free from damage, preventing malfunctions in vehicles or machinery.
Q: How do I test a wire harness with a multimeter?
A: To test a wire harness with a multimeter, set the multimeter to the continuity mode. Connect the probes to both ends of a wire in the harness. If the multimeter beeps, the wire is intact. If there's no beep, the wire may be damaged.
Q: What is the Wire harness testing procedure for diagnosing electrical issues?
A: The Wire harness testing procedure involves checking each wire for continuity. It includes testing individual wires, inspecting for shorts, and using a multimeter to verify proper voltage and connections throughout the harness.
