Stripping a wire may seem simple, but it's crucial for safe, reliable electrical connections. Improper stripping can lead to broken connections or dangerous electrical shorts. In this guide, we'll cover the best tools and techniques, including wire stripping machines, to help you strip wires safely and efficiently.
Why Proper Wire Stripping Matters
The Importance of Clean and Accurate Stripping
When you're working with electrical wires, ensuring a clean, accurate strip is paramount. Even small mistakes, like nicking the wire, can cause serious problems. Damaged wires can lead to weak connections, electrical shorts, or even fires. Proper wire stripping removes the insulation without compromising the integrity of the wire, resulting in a secure electrical connection.
Common Wire Stripping Mistakes to Avoid
Many people make common mistakes when stripping wires, especially if they're using the wrong tools or techniques. Here are a few to watch out for:
Using the wrong gauge notch: This can either fail to strip the insulation or damage the wire.
Cutting too deeply into the wire: This can cause nicks or gouges that compromise the wire's strength.
Rushing the process: Speeding through wire stripping can lead to errors and safety risks.
Safety Considerations When Stripping Wires
Wire stripping can be hazardous if not done properly. Always wear safety goggles and gloves to protect yourself from sharp edges or flying debris. If using a knife to strip wires, ensure you're handling it carefully to avoid slipping and causing injury.
Tip: Always ensure the wire stripper is in good condition before use. Dull blades can cause damage to the wire and increase the risk of injury.
Tools Needed for Wire Stripping
Manual Wire Strippers – A Simple and Reliable Choice
Manual wire strippers are one of the most common tools used for wire stripping. They consist of two blades that can be adjusted to match the gauge of the wire. When used correctly, manual wire strippers remove insulation without damaging the wire beneath.
These tools often feature multiple notches, allowing you to select the appropriate one for the wire you're working with. Some models may include additional features such as locking mechanisms, ergonomic handles, and even screw-cutting capabilities.
Self-Adjusting Wire Strippers – Effortless Precision
Self-adjusting wire strippers are designed to automatically adjust to the wire's size. All you need to do is place the wire in the jaws of the tool, and it will strip the insulation quickly and precisely. These tools are perfect for professionals or those who need to strip large quantities of wire.
Self-adjusting strippers are particularly useful for stripping wires from cables or handling insulated wires in bundles.
Specialized Tools for Small Gauge Wires (30 AWG and Below)
If you're working with smaller gauges, such as 30 AWG, it's important to choose the right tool. Many wire strippers at hardware stores can't handle small gauges effectively. Look for tools specifically designed to strip fine wires, such as those used for prototyping or wire wrapping.
Note: Small gauge wire is delicate and can be easily damaged. Always use a stripper that has a dedicated notch for the size you're working with.
Wire Stripping Machine vs. Manual Stripping Tools

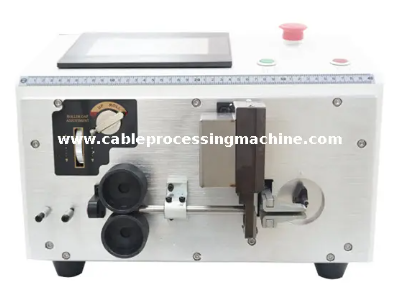

For larger-scale operations or when dealing with high volumes of wire stripping, a wire stripping machine may be a better option. These machines can quickly and efficiently strip wires without the need for manual effort, saving time and reducing the risk of human error.
Tip: While manual strippers work well for smaller tasks, investing in a wire stripping machine can boost productivity if you regularly strip large quantities of wire.

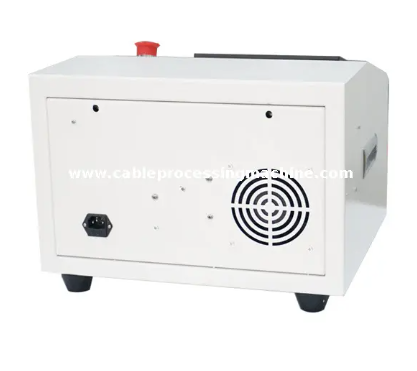

![wire stripping machine]( "wire stripping machine")
Step-by-Step Process for Stripping a Wire
Preparing the Wire and Choosing the Right Tool
Before you begin stripping a wire, it's important to select the right tool and prepare the wire. Begin by measuring the length of insulation you need to remove. The general rule is to strip about 1/4 inch from the wire, but this can vary depending on your project requirements.
Using a Manual Wire Stripper
To use a manual wire stripper:
Select the correct notch: Choose the notch that matches the wire gauge. The tool should fit snugly around the wire without digging into it.
Place the wire in the stripper: Position the wire about 1/4 inch from the end and insert it into the notch.
Squeeze the handles: Apply pressure to cut through the insulation. Twist slightly if needed to help loosen the insulation.
Pull the stripper down the wire: Gently pull the stripper toward the end of the wire to remove the insulation.
Using a Self-Adjusting Wire Stripper
Using a self-adjusting wire stripper is simple:
Place the wire in the jaws: Insert the wire into the tool's jaws, ensuring it sits securely in place.
Squeeze the handles: Apply gentle pressure, and the tool will automatically adjust to the wire size and strip the insulation.
Remove the stripped wire: Once the insulation is removed, pull the wire out, ensuring the conductor underneath is intact.
How to Strip Wires from Cables and Bundled Wires
Stripping wires from cables or bundles requires a bit more care. Here's how to do it:
Insert the cable into the stripper: Use a wire stripper that can handle larger cables. Adjust the tension to ensure a tight fit.
Strip the insulation: Once the cable is secured, squeeze the handles to strip the sheath from the cable. Be careful not to damage the internal wires.
Strip individual wires: After removing the outer sheath, you can strip each individual wire using the appropriate notch on your tool.
Choosing the Right Wire Stripping Tool for Your Needs
Manual vs. Self-Adjusting Strippers: Which is Right for You?
Both manual and self-adjusting wire strippers have their advantages. Manual strippers are great for precise, controlled stripping on a variety of wire sizes. However, self-adjusting strippers are ideal if you need to strip wires quickly and with minimal effort.
For occasional, small-scale projects, manual strippers are usually sufficient. However, for high-volume or professional use, investing in a self-adjusting stripper could save you time and effort.

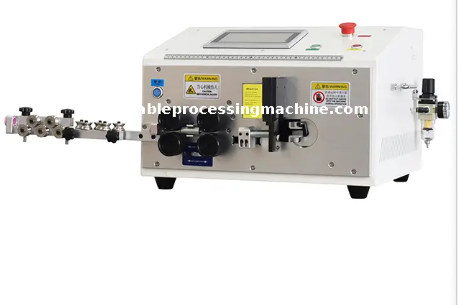

How to Use a Wire Stripping Machine for Larger Projects
Wire stripping machines are perfect for businesses or individuals who need to strip large quantities of wire regularly. These machines can quickly strip the insulation from wires of various sizes with consistent precision. To use a wire stripping machine:
Set the wire size: Adjust the machine to accommodate the gauge of the wire you're stripping.
Feed the wire into the machine: Insert the wire into the machine’s feed.
Start the machine: Activate the machine to strip the wire automatically.
Collect the stripped wire: Once the machine has completed the process, retrieve the stripped wire for use.
Factors to Consider When Selecting a Wire Stripping Tool
When choosing a wire stripper, consider the following:
Wire gauge: Make sure the tool is capable of handling the specific wire gauge you work with.
Frequency of use: For occasional projects, a manual stripper may suffice. For frequent use, a self-adjusting stripper or wire stripping machine might be better.
Ergonomics: Choose a tool that is comfortable to use for extended periods to reduce hand fatigue.
Troubleshooting Common Wire Stripping Issues
Dealing with Damaged or Nicked Wires
If you accidentally damage a wire while stripping it, the best course of action is to cut off the damaged portion and try again. A nicked wire can compromise its strength, so it's essential to use a new section of wire for a secure connection.
How to Achieve Consistent Stripping Results
Consistency is key in wire stripping. To achieve uniform results:
Always use the correct notch for the wire gauge.
Apply consistent pressure when using manual or self-adjusting tools.
Double-check your wire stripper's condition, ensuring the blades are sharp and clean.
Maintaining Your Wire Stripping Tools
To extend the life of your wire strippers:
Clean the blades regularly to remove any debris.
Lubricate moving parts to ensure smooth operation.
Store your tools in a dry, safe place to prevent rust or corrosion.
Additional Tips for Effective Wire Stripping
Stripping Wires for Specific Applications (e.g., EL Wire, Automotive)
Certain wires require special techniques. For example, EL wire has a delicate coating that can easily be damaged. Use a stripper with fine-tuned adjustments and avoid excessive pressure. Automotive wiring may require a tool that can handle both small and larger gauges effectively.
How to Avoid Over-Striping
Over-stripping can damage the wire and weaken its structure. Be sure to strip only the amount of insulation you need, and always use the appropriate notch for the wire size.
Speeding Up the Stripping Process
If you're stripping large quantities of wire, consider using a wire stripping machine or a high-speed self-adjusting stripper. These tools can help you speed up the process while maintaining precision.
Conclusion
Wire stripping may seem simple, but it requires attention to detail and the right tools to ensure safe, reliable connections. Whether you're using manual tools, self-adjusting strippers, or a wire stripping machine, understanding the correct techniques will help you achieve the best results. By following this guide, you'll strip wires like a pro, ensuring that your electrical connections are secure and long-lasting.
Suzhou Crown offers a range of products designed for efficient wire stripping, delivering high-quality performance for both small and large projects.
FAQ
Q: What is a wire stripping machine?
A: A wire stripping machine is a tool designed to efficiently remove insulation from electrical wires without damaging the metal underneath. It ensures safe, clean stripping for both small and large wire gauges.
Q: How do I use a wire stripping tool?
A: To use a wire stripping tool, select the appropriate notch for your wire size, insert the wire, and gently squeeze the handles to strip the insulation. Always ensure the wire isn't damaged during the process.
Q: Why is proper wire stripping important?
A: Proper wire stripping ensures secure, reliable electrical connections. It prevents issues like electrical shorts and broken connections, which can be caused by damaging the wire during the stripping process.
