What Gauge Wire for 30 Amp?

You should use 10 AWG copper wire for a 30 amp circuit. Picking the right wire stops it from getting too hot. This keeps your setup safe. Look at the table below to see why 10 AWG works best for 30 amp loads:

If you run wire very far, you may need a thicker wire. The National Electrical Code says this helps stop voltage drop. Always use the right wire with your power plugs crimping machines, wire crimping machines, and wire cutting and stripping machines. This makes sure your connections are safe and work well.

Always pick 10 AWG copper wire for a 30 amp circuit. This keeps your setup safe and follows electrical rules. - If you use thinner wire like 12 or 14 gauge, it can get too hot. This can start fires and break your equipment. - For wire runs longer than 100 feet, use thicker wire like 8 AWG. This stops voltage drop and keeps power strong. - Use the right crimping tools and wire cutters to make good, safe connections that last a long time. - After you finish, follow a checklist to make sure your circuit is safe and will pass inspections.

Wire Gauge Importance

Safety Risks

Choosing the right gauge for your wire keeps you safe. If you use a 12 gauge wire for a 30 amp circuit, the wire can overheat. This can cause the insulation to melt. You might even face a fire risk. Many people think a 14 gauge wire is enough, but it cannot handle the load for a 30 amp system. Always check the gauge before you start any project.

Tip: If you use a wire that is too thin, your power plugs or crimping machines may not work well. You could damage your equipment or cause a short circuit.

You should also remember that longer wire runs need a thicker gauge. This helps prevent voltage drop. For example, if you use a 12 gauge wire over a long distance, you may lose power and your devices may not work as expected. Using the correct gauge protects your home and your tools.

Code Compliance

You must follow the National Electrical Code (NEC) when you pick a wire gauge for a 30 amp circuit. The NEC gives clear steps to help you choose the right wire:

1. Find out how much current your circuit needs. For a 30 amp load, you need a wire that can handle at least 30 amps.

2. Check the length of your wire. Longer runs may need a thicker gauge to stop voltage drop.

3. Look at the NEC ampacity tables, like Table 310.15(B)(16), to see the minimum gauge for your needs.

4. Think about where you will install the wire. Hot areas or bundled wires may need a larger gauge.

5. You can pick a thicker wire for extra safety or future upgrades.




If you use a 12 gauge or 14 gauge wire for a 30 amp circuit, you will not meet code. Inspectors will not approve your work. Always use the right gauge to pass inspections and keep your setup safe. When you use wire crimping machines or wire cutting and stripping machines, matching the correct gauge ensures strong and reliable connections. This helps you avoid costly repairs and keeps your electrical system running smoothly.

Recommended Gauge

10 AWG Copper

Pick 10 AWG copper wire for most 30 amp circuits. This wire can handle a lot of electricity. It works in homes and businesses. The National Electrical Code says 10 AWG is the right size for 30 amp loads. Copper wire is strong and does not resist electricity much. This means it loses less voltage. You can use this wire for water heaters, air conditioners, and power tools.

10 AWG copper wire bends easily and is simple to put in place. It fits in small spaces and does not snap when bent. The NEC tables show 10 AWG copper wire can carry 30 amps safely. If you use wire crimping machines or wire cutting and stripping machines, this wire gives good connections. It also helps stop overheating. Always check the insulation and the temperature where you put the wire. High heat or bundled wires can lower how much current the wire can carry. You must follow NEC rules to keep your setup safe.

Note: Using the right wire size keeps your equipment safe and helps you pass checks. If you use a smaller wire, it can get too hot and may cause a fire.

Aluminum Alternatives

Sometimes people use aluminum wire for 30 amp circuits, but it is not the same as copper. Aluminum has more resistance, so you need a thicker wire for the same job. For 30 amps, use 8 AWG aluminum wire instead of 10 AWG. The bigger wire helps stop voltage loss and overheating.

Here is a table that compares copper and aluminum wire for 30 amp circuits:

Aluminum wire costs less and is lighter than copper. It makes a layer that protects it from rust. You must use special connectors or paste to stop rust at the ends. Aluminum wire does not bend as well and can break if you bend it too much. When you use wire machines, always use the right connector for the wire type and size.

• Both aluminum and copper wires work well and last long if installed right.

• Aluminum wire is softer and easier to weld, but copper is stronger and bends better.

• Aluminum wire needs more room in pipes because it is bigger.




Long Runs

If you need to run wire far, think about voltage drop. Longer wires have more resistance. This can make the voltage lower at the end and your devices may not work right. For long runs, the NEC says to use a thicker wire to stop voltage loss.

For example, if your 30 amp circuit is over 100 feet, use 8 AWG copper instead of 10 AWG. The thicker wire keeps the voltage steady and stops overheating. Always check the NEC tables and use a voltage drop calculator for your job.

Tip: When you use automatic wire cutting and stripping machines, set them for the right wire size. This gives clean cuts and strong crimps, which is important for long wires.

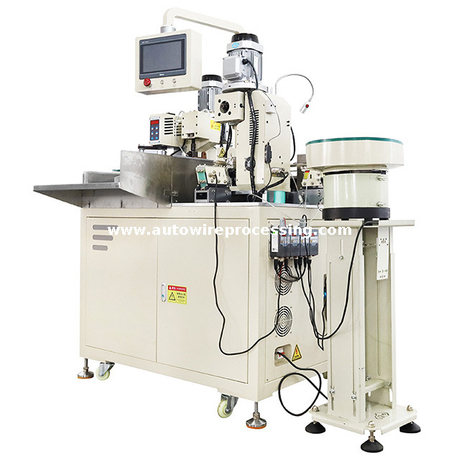

You can find many wire machines, like wire crimping machines and wire harness assembly tools, at Suzhou Crown's product page. These tools help you work with different wire sizes and gauges for any 30 amp job.

Power Plugs Crimping Machines

Wire Selection

When you work with power plugs crimping machines, you need to pick the right wire. For a 30 amp circuit, you should use 10 AWG copper wire. This wire can handle the current and keeps your setup safe. If you use the wrong size, your connections may overheat. Always check the wire type before you start. Some jobs use aluminum wire, but you must use a thicker size for the same current. Look at the label on the wire to make sure it matches your needs.

Tip: Use a wire cutting and stripping machine to prepare your wire. This tool gives you clean cuts and makes crimping easier.

Crimping Tools

You need the right crimper for your job. Power plugs crimping machines work best when you match the tool to the wire and connector. A dedicated crimper gives you a strong and safe connection. If you use the wrong tool, the crimp may not hold. For powerpole crimping, always use the tool made for that connector. This helps you avoid loose wires and keeps your circuit safe. You can find many types of crimpers, from hand tools to automatic machines. Pick the one that fits your project.

Here is a quick guide:

Suzhou Crown Solutions

Suzhou Crown offers a wide range of power plugs crimping machines. You can find solutions for every step, from wire cutting to crimping. Their machines help you make fast, safe, and reliable connections. Suzhou Crown also provides wire harness assembly machines and automatic wire labeling machines. These products work well for 30 amp circuits and many other uses. If you need help, Suzhou Crown’s team can guide you to the right machine and setup. You get support, training, and quality you can trust.

Note: Always match your wire, connector, and crimping tool. This keeps your power plugs safe and helps you pass inspections.

Installation Tips

Stripping and Crimping

You must get your wire ready before you connect it. Use a wire cutting and stripping machine to take off just enough insulation. This stops you from hurting the copper strands inside. If you use 12 gauge or 14 gauge wire by accident, the circuit cannot handle 30 amps. Always check the wire size before you start. When you crimp the connector, pick the right tool for your wire and terminal. A strong crimp keeps the connection tight and stops it from getting too hot. Many workers use automatic crimping machines for the same results every time. You can also use wire harness tester tools to check your work.

Tip: A good crimp should not come off if you pull it gently. Test the crimp’s strength before you move on.

Common Mistakes

People often make easy mistakes when they install wires. One mistake is using the wrong wire size, like 12 gauge, for a 30 amp circuit. This can make the wire get too hot. Another mistake is making a weak crimp, which can cause loose wires. If you use a connector that does not fit your wire, it may not work well. Some people forget to look for cuts or nicks in the insulation. Damaged insulation can cause short circuits. Always use the right wire cutting and stripping machines to stop these problems.

• Do not join copper and aluminum wires unless you use special connectors.

• Never use 14 gauge wire for circuits that need a lot of power.

• Do not make terminal screws too tight or too loose.




Final Checks

When you finish your 30 amp circuit, follow a checklist to make sure it is safe. Here are the steps you should take:

1. Look at all wires, breakers, and covers for damage.

2. Make sure the electrical meter works right.

3. Check that circuit breakers match the load.

4. Tighten every connection so it does not overheat.

5. Test GFCI outlets to see if they work.

6. Measure voltage at the terminals.

7. Use a megohmmeter to test insulation resistance.

8. Test circuit breakers to see if they work right.

9. Check panel lamps to see if they light up.

10. Look at busbars for rust or loose spots.

11. Test the grounding system to make sure it is safe.

12. Watch for hot spots that show overloading.

13. Label all parts so you can find them later.

14. Make sure you can get to the panel easily.

Note: Using a wire harness tester can help you find problems before you turn on the circuit. Careful checks keep your setup safe and working well.

Always use 10 AWG copper wire for your 30 amp circuit. This choice keeps your system safe and meets code. You lower the risk of fire and equipment damage. Experts and the National Electrical Code agree on this standard.

• NEC sets 10 AWG copper as the minimum for 30 amp circuits.

• Many experts suggest 8 AWG for extra safety.

• Most electrical fires and injuries come from using the wrong wire size.

• Using the right wire harness tester and wire cutting and stripping machines helps you get strong, safe connections.

If you need help, talk to professionals or reach out to Suzhou Crown for power plug assembly solutions and expert advice.

FAQ

What size wire do you need for a 30 amp breaker?

You need 10 AWG copper wire for a 30 amp breaker. This size meets safety standards and works well with most power plug crimping machines. Always check the National Electrical Code for your project.

Can you use 12 gauge wire on a 30 amp circuit?

No, you should not use 12 gauge wire for a 30 amp circuit. It cannot handle the current safely. Using the wrong size can cause overheating and fire risks.

What is the best wire for a 30 amp circuit?

The best wire for a 30 amp circuit is 10 AWG copper. You get strong connections and low resistance. For long runs, consider 8 AWG copper. Use a wire harness tester to check your installation.

Do you need special tools for crimping 30 amp wires?

You should use dedicated crimping machines or hand tools designed for 10 AWG or 8 AWG wires. Automatic wire labeling machines help organize your setup. Suzhou Crown offers reliable solutions for these tasks.
