Automotive manufacturing has entered an era of intelligent automation, electrification, and sustainability. At the core of this transformation is a robust wiring infrastructure that ensures safe, efficient, and high-performing vehicles. As wiring systems become more complex, the role of wire processing machines becomes indispensable. From traditional internal combustion vehicles to cutting-edge electric vehicles, the demand for precise, high-speed, and multifunctional wire processing machines has never been higher. This article explores the best wire processing machines for automotive cable production, highlighting their functionality, advantages, and how they align with industry trends and manufacturing goals.
Why Wire Processing Matters in Automotive Cable Production
In vehicles, cables carry power, signals, and data to and from nearly every functional component. The integrity and reliability of these cables directly impact vehicle performance, safety, and longevity. The challenge lies in producing massive quantities of wire harnesses at scale, with the precision required for increasingly complex vehicle architectures.
Wire processing machines streamline this effort by automating critical tasks such as cutting, stripping, crimping, sealing, twisting, welding, and connector assembly. Especially in the automotive sector, these machines ensure consistency, improve safety, and drastically cut down on human labor. Their impact extends to improved production scheduling, enhanced traceability, and compliance with stringent automotive standards like IATF 16949.
What Makes an Automotive Wire Processing Machine Different?
Automotive wire processing machines must meet specific criteria:
Support for multiple wire sizes and materials
Advanced insulation stripping for multi-layer cables
High-speed operation with minimal downtime
Seamless integration with quality management systems
Customizable tooling for various terminal and connector types
Robust safety features to protect operators and equipment
This specialization allows for handling diverse wiring needs, from engine control units to in-vehicle infotainment systems.
Full Workflow of Automotive Wire Processing
1. Wire Feeding, Cutting, and Stripping
Machines measure and cut wires with precision. Wire cutting and stripping machines perform both tasks, ensuring consistent length and clean conductor exposure.
2. Wire Bending and Forming
Wire stripping and bending machines manipulate wires to fit tight installation paths. This is vital in compact car interiors or electric vehicle battery packs.
3. Shielding Preparation
To prevent signal interference, shielding brushing and twisting machines remove shielding materials and twist the remaining strands for stability.
4. Terminal Crimping

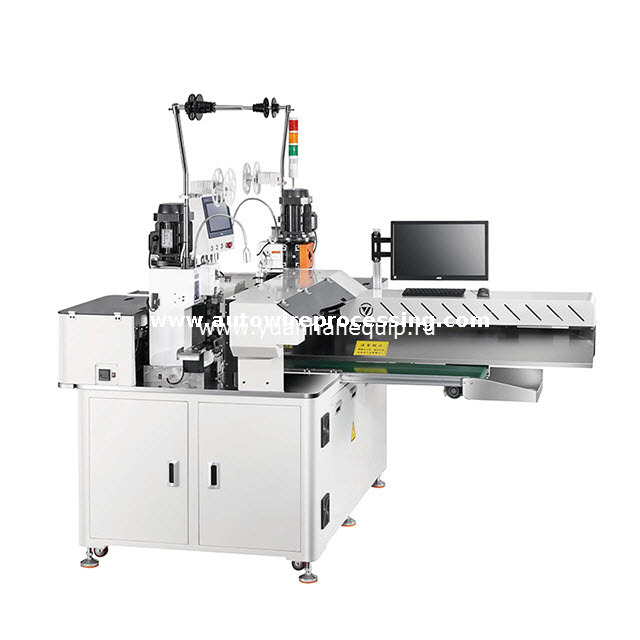

Wire crimping machines attach terminals with controlled force. Wire cutting stripping and crimping machines perform these steps in one cycle, increasing throughput.
5. Rubber Seal and Connector Insertion
Wire rubber seals inserting machines ensure waterproofing. Wire housing connector assembly machines align and insert wires into complex connector housings.
6. Tinning and Heat Shrinking
Wire tinning machines apply a solder coat for oxidation resistance. Heat shrink tube inserting machines cover joints with insulating sleeves.
7. Welding and Soldering
Ultrasonic wire welding machines join wires without flux or filler material. Wire soldering machines precisely deliver solder to sensitive components.
8. Final Crimping for Plugs
Power plugs crimping machines connect thick wires to plugs used in high-voltage and high-current automotive systems, such as EV battery packs.
Performance Comparison: Manual vs. Automated Processing
| Feature | Manual Production | Wire Processing Machines |
| Wires per hour | 150–300 | 2,000–4,000 |
| Operator requirement | Multiple | Single operator |
| Quality control | Inconsistent | Automated and repeatable |
| Safety | Risk of repetitive strain | Built-in safety mechanisms |
| Cost efficiency | Labor-intensive | High ROI after deployment |
| Error rate | Higher | Exceptionally low |
Industry Trends Impacting Machine Design
Demand for high-voltage cable processing in EVs
Increased adoption of aluminum wires for weight reduction
Use of multi-layer insulation for thermal resistance
Data-focused wiring for autonomous vehicles
Miniaturization of harnesses to fit smaller control units
These trends are shaping the next generation of wire processing machines to be faster, more adaptive, and smart-factory ready.
Smart Features That Add Value
IoT-enabled diagnostics and alerts
Vision systems for pin and terminal verification
Real-time data logging for traceability
Auto tool changeover for multi-wire production
Touchscreen HMI for simplified operation
Smart capabilities ensure fewer machine stoppages, faster fault resolution, and better integration into digital factory ecosystems.
Quality Assurance Built Into Machines
Many machines now feature inline QC mechanisms:
Pull force testing after crimping
Insulation integrity verification post-stripping
Automatic rejection of wires that fail checks
Such features reduce rework, minimize downtime, and ensure only compliant products move to final assembly.
Emerging Applications Beyond Traditional Harnesses
Wire processing machines are expanding their footprint:
In EV charging stations and infrastructure
For solar inverter and battery wiring
In aviation for fly-by-wire control systems
In robotics for sensor and actuator wiring
These sectors demand reliable, compact, and high-throughput wiring solutions—an area where advanced machines excel.
Lifecycle and Maintenance Considerations
Proper maintenance ensures maximum ROI:
Regular tool cleaning and inspection
Scheduled lubrication and part replacement
Firmware updates for bug fixes and features
Predictive maintenance using usage analytics
Modern machines often include automatic reminders and self-diagnostics to streamline upkeep.
Customization and Scalability
For OEMs and Tier 1 suppliers, flexibility is vital. Look for:
Machines with modular stations (e.g., crimping, tinning, labeling)
Customizable software to meet regional automotive standards
Expansion options for future model variants or connector types
Scalability is especially valuable in platforms that support both low-volume prototyping and high-volume production.
Training and Workforce Integration
Training requirements have been minimized thanks to intuitive UIs. Features that simplify integration include:
This lowers the barrier for entry and allows manufacturers to upskill existing personnel quickly.
Environmental and Sustainability Benefits
Wire processing machines support green manufacturing goals:
Reduce material waste with precision cutting
Improve energy efficiency with optimized cycle paths
Lower scrap rates by detecting defects early
Support recycling by separating insulation and conductor
These benefits help meet sustainability targets and regulatory compliance while improving operational efficiency.
FAQs
Q1: What are the most critical wire processing machines in automotive cable production?
A1: Wire cutting stripping and crimping machines, wire rubber seals inserting machines, and wire housing connector assembly machines are crucial.
Q2: Can one machine handle multiple wire types?
A2: Yes, many wire processing machines are modular and can be adjusted for different gauges and insulation types.
Q3: Are these machines suitable for electric vehicle cable production?
A3: Absolutely. New energy cable processing machines are tailored for EV-specific requirements like high voltage and thick insulation.
Q4: What is the benefit of ultrasonic wire welding in vehicles?
A4: It ensures strong, clean, and vibration-resistant joins, which is vital for power cables and safety-critical systems.
Q5: How do these machines help with waterproof cable applications?
A5: Wire rubber seals inserting machines and heat shrink tube inserting machines protect connectors from moisture and dust.
Q6: Can these machines integrate with MES or ERP systems?
A6: Yes, many advanced models offer IoT and API integration for real-time monitoring and traceability.
Q7: What’s the typical maintenance routine?
A7: Regular cleaning, calibration checks, and software updates. Some models have predictive maintenance features to avoid downtime.
Wire processing machines are essential in the automotive cable production process. They enhance consistency, speed, and reliability—whether assembling harnesses for combustion engines or cutting-edge electric drivetrains. Their role spans every aspect of wire preparation: from insulation removal to waterproof sealing, from precision crimping to high-strength ultrasonic welding.
As vehicles become more connected and electrified, the pressure on manufacturers to deliver reliable wiring systems grows. Choosing high-performance wire processing machines—especially those designed for new energy applications and complex connector assembly—is key to staying competitive.
By investing in machines that offer automation, scalability, and integration, manufacturers can meet today’s production demands while preparing for the vehicles of tomorrow.
