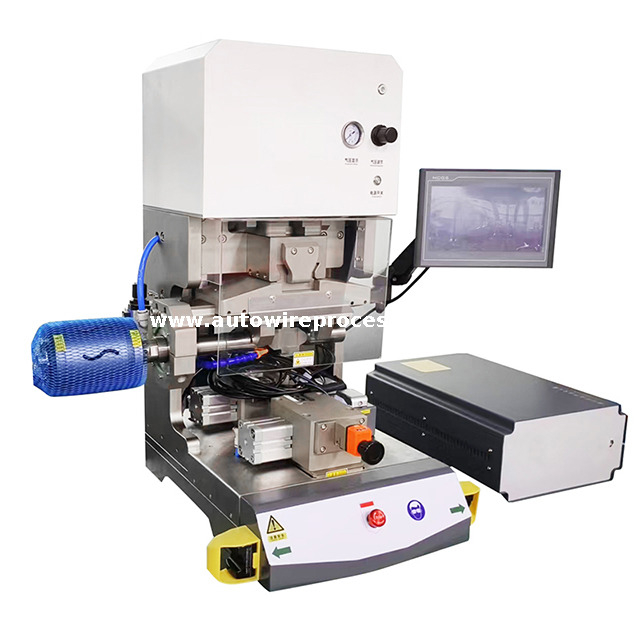

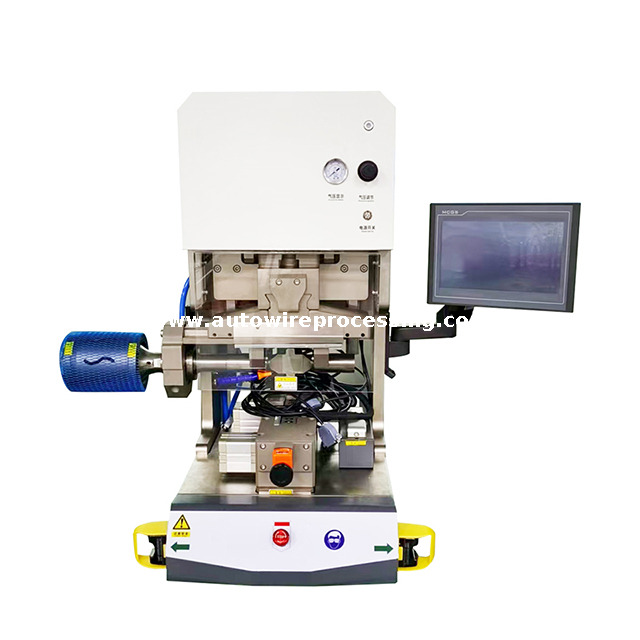

Ultrasonic Wire to Connector Welding Machine

Introducing our ultrasonic wire to connector welding machine, designed to meet the demanding needs of various industries. This cutting-edge machine utilizes ultrasonic technology to seamlessly weld wires to connectors with precision and efficiency.
  • WL-N2080

  • Suzhou Crown

Availability:

○ Digital circuit, time mode, adjustable amplitude, automatic frequency tracking, intelligent protection, welding workpiece vibration, Chinese and English switching.
○ Automatic frequency tracking (real fully automatic frequency tracking, no need to adjust the frequency when changing the welding head)
○. Dynamic display of welding current, usage time, power, amplitude and other parameters.
○ The frequency and overcurrent protection can be manually adjusted during welding.
○ Precision linear guide rails to ensure smooth operation of the equipment and optimal welding accuracy.
○ The power box maintains stable output when the voltage fluctuates.
○ Short welding time, high efficiency, fast welding speed and energy saving. Good conductivity, high strength, zero resistance after welding. No need to add any solder. No sparks, no smoke, safe and reliable.

Model WL-N2080
Control Method PLC
Input Voltage 220V
Maximum Output Power 8000W
Working Frequency 20HZ
Welding Time Range 0.5S - 2S
Welding Area Range within 80 mm²
Operating Humidity 0 - 40°
Working Air Pressure 0.2 - 0.8MPa
Ambient Temperature 20 - 70
Machine Weight 150KG
