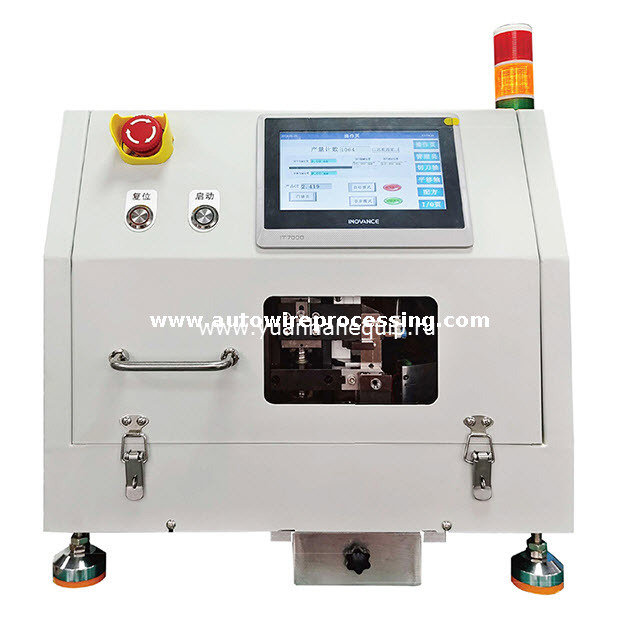

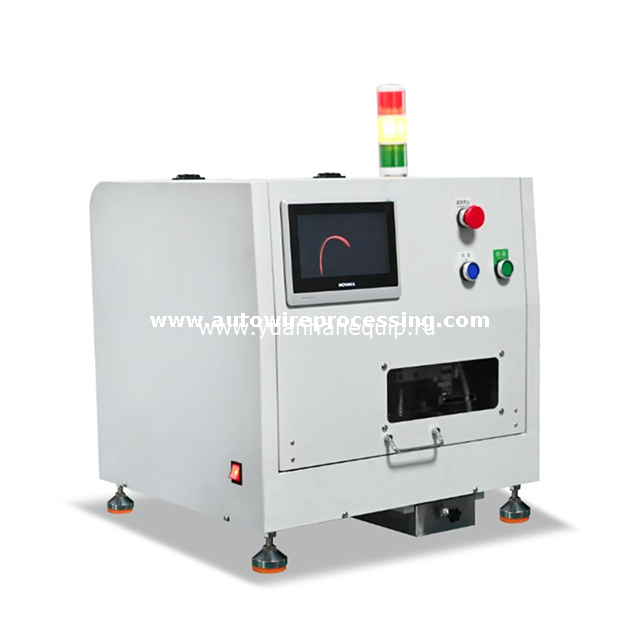

Fiber Optic Cable Stripping and Splitting Machine WL-016
Equipped with advanced technology, our machine is capable of handling various types of fiber optic cables with ease. The stripping process is carried out with utmost precision, ensuring that the integrity of the cable is maintained throughout. The splitting function allows for the separation of individual fibers without causing any damage, making it an essential tool for any fiber optic installation or maintenance project.
○ Stripping parameters for different wire materials can be directly adjusted numerically for easy operation. ○ Fiber optic stripping parameters for various diameters can be stored and recalled when switching between gauges. ○ Servo motor control effectively controls stripping and splitting accuracy. ○ Large differences in wire diameter can be adjusted quickly and easily by simply replacing the positioning block, typically within 3 minutes.
○ Stripping parameters for different wire materials can be directly adjusted numerically for easy operation. ○ Fiber optic stripping parameters for various diameters can be stored and recalled when switching between gauges. ○ Servo motor control effectively controls stripping and splitting accuracy. ○ Large differences in wire diameter can be adjusted quickly and easily by simply replacing the positioning block, typically within 3 minutes.
Model
WL-016
Efficiency
C/T = 3.5S/piece
Air Supply
0.6 - 0.8Mpa
Applicable Wire Diameter
Φ1.4 - Φ3
Ambient Temperature
-5 - 40°C
Stripping Length
Within 30 mm
Voltage
AC 220V
Stripping Precision
0.01 mm
Current
50/60Hz
Fork Length
Within 15 mm
Power
0.9 kw
Weight
Approximately 35 kg
Main Dimensions
L480mm×M400mm×H460mm
Model
WL-016
Efficiency
C/T = 3.5S/piece
Air Supply
0.6 - 0.8Mpa
Applicable Wire Diameter
Φ1.4 - Φ3
Ambient Temperature
-5 - 40°C
Stripping Length
Within 30 mm
Voltage
AC 220V
Stripping Precision
0.01 mm
Current
50/60Hz
Fork Length
Within 15 mm
Power
0.9 kw
Weight
Approximately 35 kg
Main Dimensions
L480mm×M400mm×H460mm
